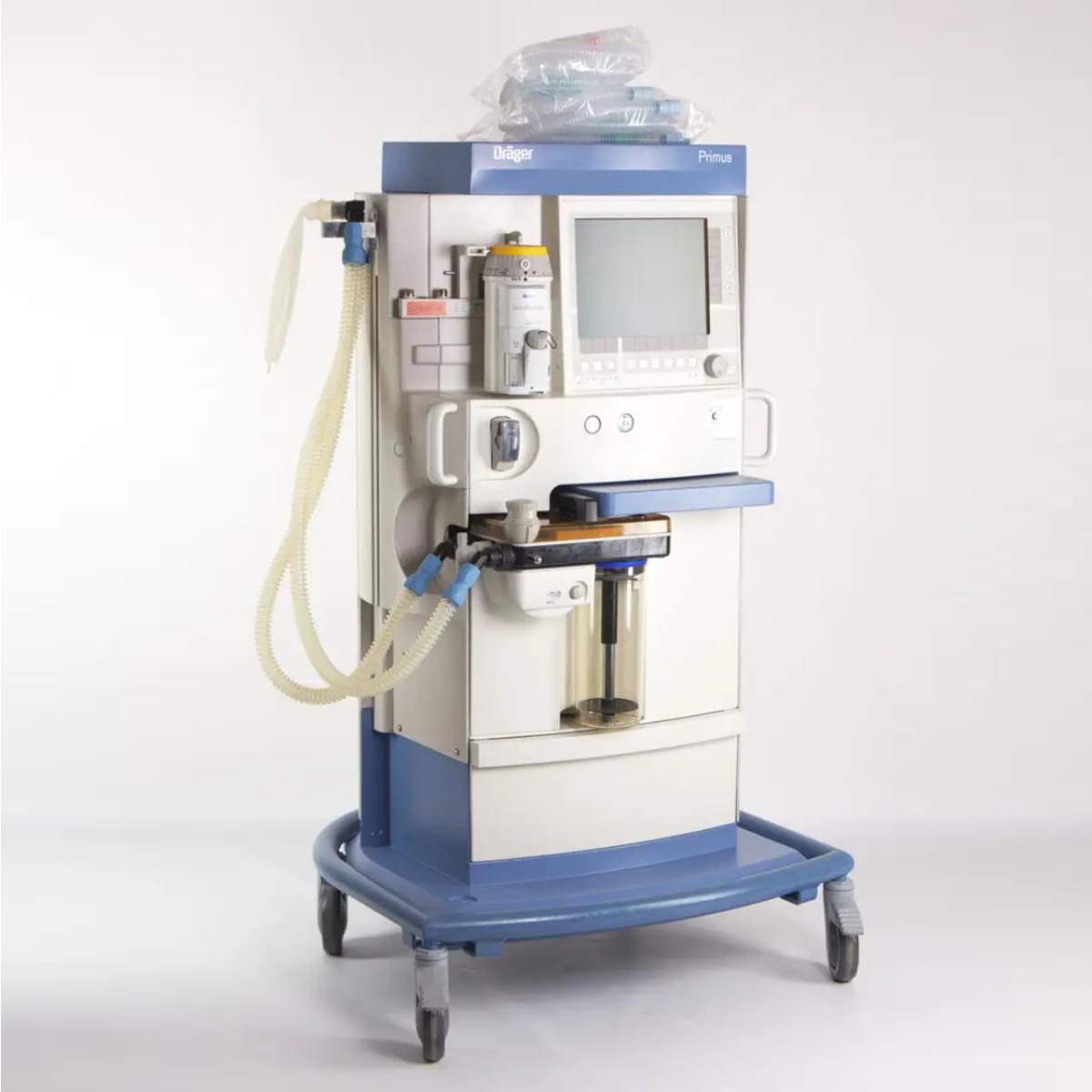

DRAGER Primus Anesthesia Machine

The DRAGER Primus Anesthesia Machine offers advanced anesthesia delivery and monitoring for safe and precise patient care.

The DRAGER Primus Anesthesia Machine is a state-of-the-art medical device designed to provide comprehensive anesthesia delivery and patient monitoring capabilities.

The machine’s versatility is a key highlight, accommodating various patient populations from pediatrics to adults, and supporting diverse surgical interventions. This adaptability enables healthcare providers to customize anesthesia delivery to match individual patient needs and procedural requirements.

Patient safety takes center stage with the Primus Anesthesia Machine. Equipped with advanced monitoring parameters, including respiratory and oxygen levels, it allows continuous tracking of vital signs throughout the anesthesia process.

The user interface is designed for ease of use. The intuitive touchscreen display provides quick access to essential information and enables clinicians to adjust ventilation settings, monitor patient data, and control parameters.

Furthermore, the Drager Primus Anesthesia Machine’s connectivity facilitates seamless integration into healthcare networks and electronic medical record systems. This connectivity streamlines data sharing, enhancing communication among medical teams and ensuring consistent documentation of anesthesia settings and patient information.

The machine’s ergonomic design and compact footprint make it suitable for a variety of clinical environments, contributing to efficient workflows in operating rooms and intensive care units. Its intuitive controls and user-friendly interface reduce the learning curve, enabling healthcare providers to navigate the equipment with confidence.

The DRAGER Primus Anesthesia Machine is an advanced medical device that combines precision, adaptability, and safety in anesthesia delivery. With its versatile capabilities, comprehensive patient monitoring, and user-friendly interface.

Technical Data

Gas flow control
Weight 115 kg (without vaporizers or cylinders)
Dimensions (H x W x D) 137 cm x 80 cm x 80 cm
Power 200 W, typical
Operating voltage 100-240 V~, 45-65 Hz
Integrated power backup at least 30 minutes, typical 90 minutes, depending on ventilation mode
Ventilator E-Vent® plus Electrically driven and electronically controlled
Operating Modes Manual, spontaneous, Volume Mode (IPPV), Pressure Mode (PCV),
Optional: Pressure Support (PS), Synchronized volume controlled ventilation (SIMV), optional with PS, Synchronized pressure controlled ventilation, optional with PS
Pressure limitation PMAx(in Volume Mode) (PEEP+10) up to 70 hPa
Pressure limitation P”SP (in Pressure Mode) (PEEP+5) up to 70 hPa
Trigger 0.3-15 l/min
Tidal volume (in Volume Mode) 20-1400 ml
5-1400 ml (option)
Tidal volume (in Pressure Mode) 10-1400 ml
Breathing frequency (freq.) 3-80 1/min
Inspiration time [T(INSP)] 0.2-6.7 s
Inspiration/Expiration time ratio (l:E) max. 5:1 to 1:99
Plateau time [T(IP):T(INSP)] 0-60 %
PEEP in Volume Mode 0-20 hPa (max. PMAx -10 hPa)
PEEP in Pressure Mode 0-20 hPa (max. P,NSP -5 hPa)
Fresh-gas flow 0 and 0.2-18 Umin
T (SLOPE) (in Pressure Mode and Pressure Support) 0-2 s
Total system leakage < 150 ml at 30 hPa (automatic leak test)
O2 flow control Sensitive ORC function: at least 25 Vol.% or 200 ml/min for nitrous oxide (N20) as carrier gas; 02 concentration: 21-100 Vol.%
O2 flush > 35 Umin
02 safety flow 0-12 l/min
External fresh gas outlet optional
Monitoring lnspiratory and expiratory concentration of 02, N20, CO2 as well as anaesthetic agents (Halothane, lsoflurane, Sevoflurane, Desflurane); Minute volume (MV) and Tidal volume (VT); Breathing frequency; Peak pressure, plateau pressure, mean pressure, PEEP; Patient compliance CPAT; Option: Functional oxygen saturation (SpO2)

The following parameters maybe displayed as waveforms: Concentration of CO2, O2, as well as anaesthetic agents, airway pressure, inspiratory and expiratory flow; Option: Plethysmogram; Bar graph display of volumeter and tidal volume; Virtual flow tubes or O2, AIR, N2O; Display of graphical trends and numerical lists of measured values; AutoSet for alarm limits

Serial interface 3 x RS 232
Protocol Medibus
Absorber volume 1.5 L
Condition

Refurbished
