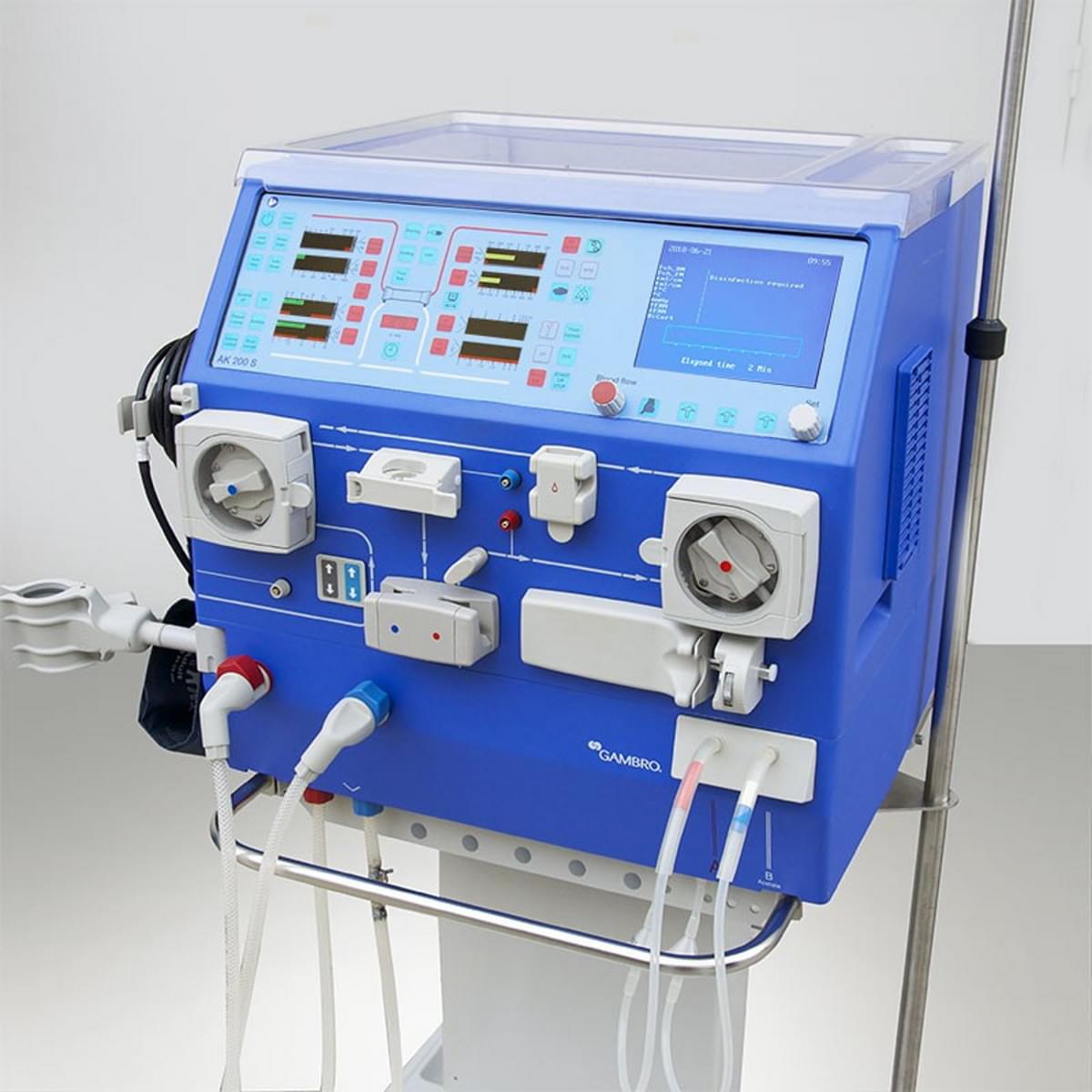

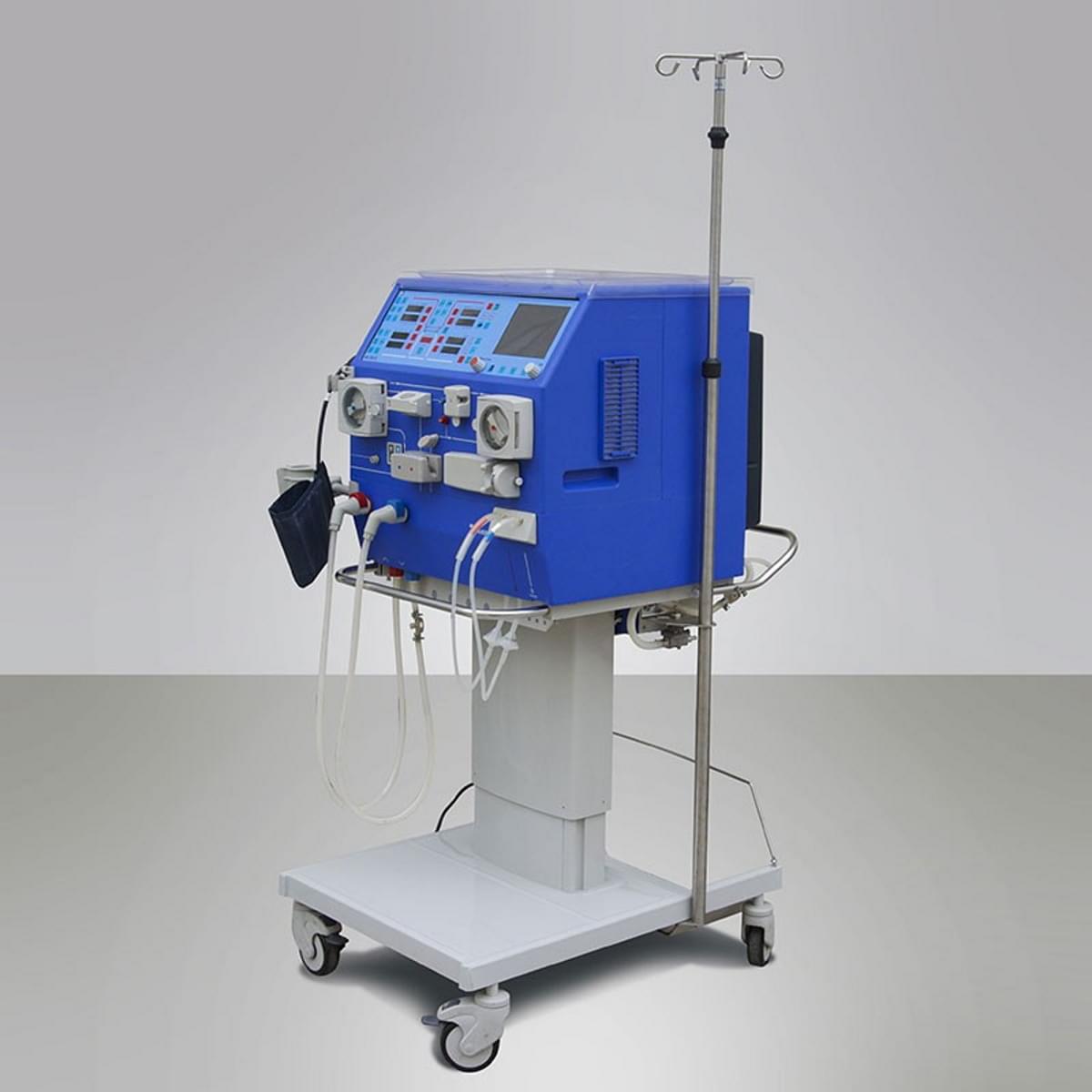

The GAMBRO AK 200 S Dialysis Machine stands as a hallmark of innovation in the field of renal care. Designed to provide comprehensive and precise hemodialysis treatment, this advanced machine addresses the intricate needs of patients with kidney failure. With a focus on patient comfort, treatment efficiency, and safety, the GAMBRO AK 200 S is an essential asset in modern healthcare settings.
At the core of the AK 200 S is its ability to perform hemodialysis, a life-sustaining process that removes waste products and excess fluids from the blood when the kidneys are unable to do so naturally. The machine operates using a highly efficient and automated system that carefully controls parameters like blood flow, dialysate flow, and ultrafiltration rates. This meticulous control ensures that patients receive effective treatment tailored to their specific needs.
An exceptional feature of the AK 200 S is its innovative technology that monitors and adjusts treatment parameters in real-time. This real-time monitoring allows healthcare providers to make immediate adjustments to treatment settings, ensuring that patients are receiving the most appropriate and personalized care throughout the dialysis session. This capability maximizes the efficiency of each treatment while minimizing the risk of complications.
The AK 200 S also incorporates safety mechanisms that prioritize patient well-being. The machine is equipped with alarms and sensors that alert healthcare professionals to any deviations from the prescribed treatment parameters. This early warning system enables rapid response to potential issues, enhancing patient safety and minimizing the risk of adverse events.
Patient comfort is another key consideration of the AK 200 S design. The machine’s interface is designed to be user-friendly, with clear displays and intuitive controls that facilitate easy operation. Additionally, the treatment process is optimized for patient comfort, with features that minimize discomfort and the risk of complications associated with dialysis treatment.
The machine’s compact footprint and efficient use of space make it suitable for a variety of healthcare environments. Its portability and ease of setup allow it to be utilized in hospitals, clinics, and even home care settings, ensuring that patients can access quality dialysis treatment without extensive travel.
Maintenance and serviceability are crucial for medical equipment, and the AK 200 S addresses these concerns with its streamlined design. The machine’s components are designed for easy cleaning and maintenance, reducing downtime and ensuring that the machine remains in optimal working condition for uninterrupted patient care.
In summary, the GAMBRO AK 200 S Dialysis Machine is a testament to advanced medical technology and patient-centered care. Its precision in delivering hemodialysis treatment, real-time monitoring capabilities, safety features, and emphasis on patient comfort make it an indispensable tool in renal care. By combining innovation, efficiency, and patient well-being, the AK 200 S reflects GAMBRO’s commitment to enhancing the quality of life for patients undergoing hemodialysis.
Blood flow control
Flow rate, double needle:
0 and 20 to 500 ml/min
Flow rate, single needle, single pump: 0 and 20 to 500 ml/min, time or pressure-controlled
Mean flow, single-needle, double pump: 0 and 10 to 400 ml/min, stroke volume controlled
Blood pressure supervision
Arterial pressure: -700 to +750 mmHg
System pressure: -700 to +750 mmHg
Venous pressure: -700 to +750 mmHg
Air detection ( Level detector)
Method: Ultrasonic detector
Drip chamber size: 22 mm diameter
Flow rate: 0 to 10 ml/h, programmable stop time, accumulated volume read-out
Inlet pressure: 100 to 800 kPa (1 to 8 bar)
Inlet temperature: 5 to 30 °C Quality: Fluid should comply with national & international standards,
Profiling: Sodium, bicarbonate and UF Hemodiafiltration: Single or double-needle
Dialysis fluid preparation and monitoring Temperature:
Adjustable between 30 to 39 °C
Flow rate: 300 to 700 ml/min Acetate mode:
Na+ range 130 to 150 mmol/l
Na+ range 115 to 160 mmol/l
HCO3- range 20 to 40 mmol/l
pH meter: Range 1.0 to 9.9
Substitution flow rate: 0.3 to 2.0 litres/h
UF volume: Adjustable, 0 to 30 l Accuracy: ± 50 ml/h or ± 2.5% UF rate: 0 to 4 l/h
Blood leakage detection
Disinfection and cleaning
Chemical: Peracetic acid, hypochlorite or formaldehyde
Heat: Heat, liquid citric acid or CleanCart Rinse/drain/decalcification:
Rinse, citric acid or CleanCart C
Mains voltage: 115/230V AC (± 10%) Frequency: 50 to 60 Hz (± 5Hz)
Max 2250 W at 230V or 1650 W at 115V
Fully prepared for battery backup
Connection of external equipment
Connectors: RS 232C or RS 422
Dimensions and weight
Weight: 81 to 88 kg
Width: Machine 570 mm, stand 573 mm Depth: Machine 610 mm, stand 753 mm
Height: 1152 to 1382 mm in 5 fixed positions or 1175 to 1340 mm adjustable
Ambient temperature: 18 to 35 °C
Relative humidity: 15 to 85% Approx. 1000 meters above sea level
The AK 200 S complies with the following standards:
IEC 60601-1 General requirements for safety, Class 1, type B
IEC 60601-2-16 Particular requirements for safety of haemodialysis, haemodia- filtration and haemofiltration equipment
IEC 60601-2-30 Particular requirements for the safety of automatic cycling indirect blood pressure monitoring equipment
IEC 60601-1-2 Electromagnetic compatibility
CE 0086 This product is CE-marked in accordance with the requirements in EC
3 /42/EEC of 14 June,
93, concerning medical devices
