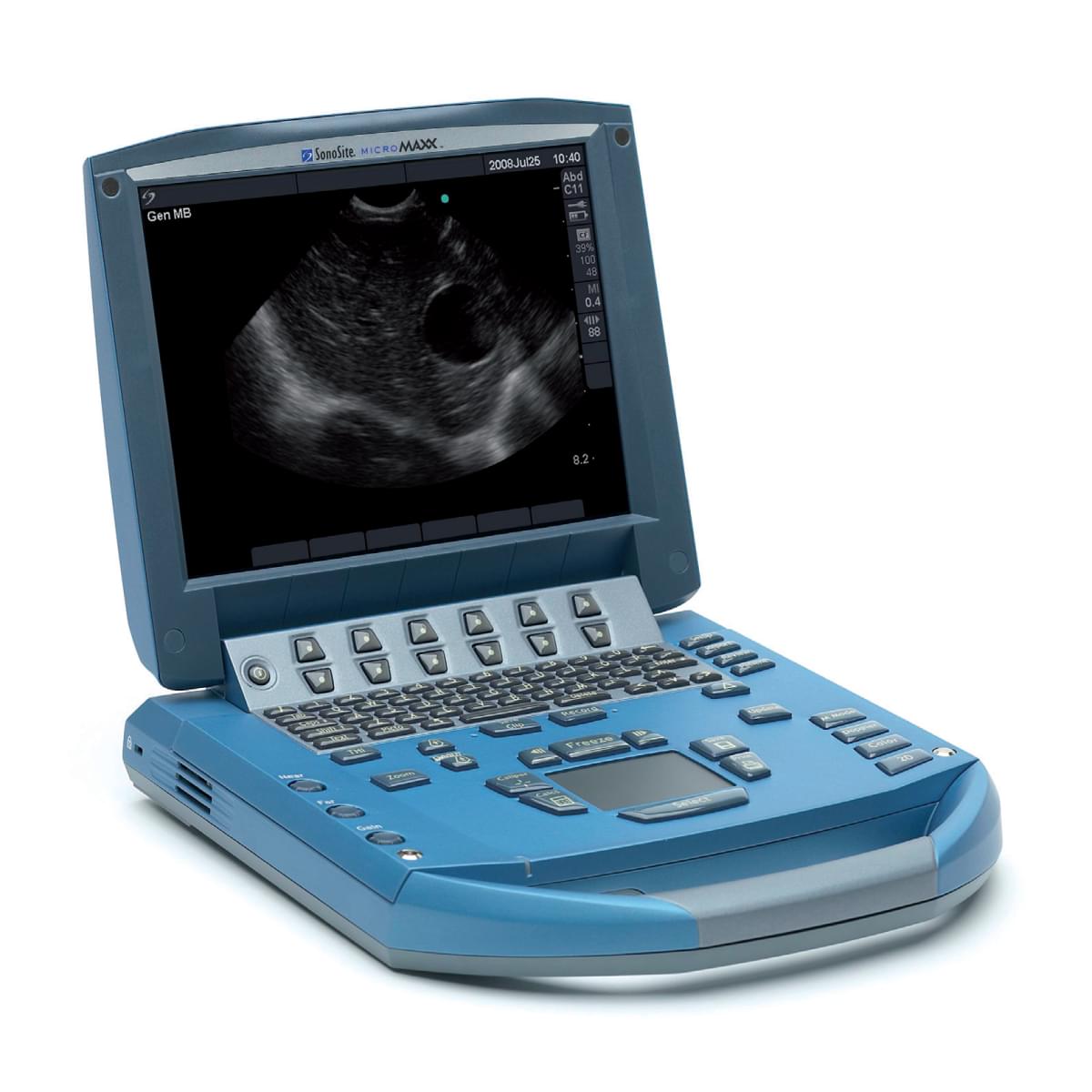

The SONOSITE MICROMAXX Ultrasound is a compact and portable imaging system designed to deliver high-resolution ultrasound visuals in various medical settings. Its portability makes it ideal for point-of-care applications, emergency departments, and other scenarios where mobility is crucial. Despite its small size, the MICROMAXX offers exceptional image quality, enabling healthcare professionals to accurately diagnose and assess various medical conditions.
Equipped with advanced transducer technology and imaging algorithms, the MICROMAXX ultrasound machine provides detailed images of organs, tissues, and blood flow patterns. Its user-friendly interface simplifies operation, allowing clinicians to quickly access imaging modes and optimize settings. The system’s versatility makes it valuable for a range of clinical applications, including abdominal imaging, vascular assessment, musculoskeletal imaging, and more.
The MICROMAXX’s compact design doesn’t compromise on performance, making it an essential tool for rapid diagnostics and efficient patient care. Its ability to deliver high-quality visuals on the go, combined with its ease of use and adaptability, solidifies its place as an essential device in modern medical practice.
General
- Architecture: All-digital broadband.
- Number of channels: 128 channels.
- Dynamic range: Up to 165 dB.
- Gray scale: 256 shades.
- HIPAA compliance: Comprehensive tool set.
Image processing
- 3 sweep speeds.
- 1/2:1/2, 1/3:2/3 and full-screen options 2X Pan/Zoom.
- Tissue Harmonic Imaging.
- Broadband, multifrequency imaging 1-8 focal zones.
- Image processing: Compression, contrast enhancement, persistence, dynamic range, and gain.
Imaging Modes
- 2D (256 gray shades)
- Color power Doppler (CPD) (256 colors)
- Color Doppler (Color) (256 colors)
- M-Mode
- Pulsed wave (PW) Doppler
- Continuous Wave (CW) Doppler
- Tissue Doppler Imaging (TDI)
- Tissue Harmonic Imaging (THI)
Image Storage
- The number of images saved to the CompactFlash card varies depending on the card storage capacity. Cine buffer.
Transducers
- Broadband and Multifrequency: Linear Array, Curved Array, Phased Array, Multiplane TEE, and Micro-Convex.
- Linear Array, Curved Array, Phased Array, Multiplane TEE, and Micro-Convex.
Compatible Transducers
- C11e/8-5 MHz (6ft./1.8m)
- C60e/5-2 MHz (5.5 ft./1.7 m)
- D2/2 MHz (5.5 ft./1.7m)
- HFL38/13-6 MHz (5.6 ft./1.7 m)
- ICT/8-5 MHz (5.5 ft./1.7 m)
- LAP/12-5 MHz (8.2 ft/2.5 m)
- L25e/13-6 MHz (7.5ft./2.3m)
- L38e/10-5 MHz (5.5 ft./1.7 m)
- P10/8-4 MHz (6 ft./1.8 m)
- P17/5-1 MHz(6 ft./1.8 m)
- SLA/13-6 MHz (7.5 ft./2.3 m)
- SLT/10-5 MHz (8.1 ft./2.5 m)
- TEE/8-3 MHz (7.2 ft./2.2 m)
User Interface and Remappable Controls
- Soft keys to drive advanced features.
- Delta key: user-assigned functions for increased ease of use.
- Alphanumeric QWERTY keyboard.
- Track pad with select key for easy operation and navigation.
- Doppler/M-mode controls: angle, steer, scale, baseline, gain, and volume.
- Image acquisition keys: review, report, VCR, clip store, save.
Application-Specific Calculations
- OB/GYN/Fertility: Diameter/ellipse measurements, volume, six follicle measurements, estimated fetal weight, established due date, gestational age, last menstrual period, growth charts, user-defined tables, multiple user selectable authors, ratios, amniotic fluid index, patient report.
- Vascular: Diameter/ellipse/trace measurements, volume, volume flow, percent diameter and area reduction, Lt/Rt CCA, ICA, ECA, ICA/CCA ratio, time average mean (TAM), peak trace, ICA/CCA ratio, angle correction, patient report IMT (Intima-Media Thickness): SonoCalc™ IMT Software – automatic edge detection with mean and maximum thickness reporting.
- Cardiac: Complete cardiac calculations package and patient report including: Ventricular, aortic, and atrial measurements; ejection fraction, volume measurements.
- Transcranial Doppler (TCD): Complete TCD package including Time, Average Peak. (TAP)
Onboard Image and Clip Storage/Review
- Store up to 10,000 images with a 1 Gb CompactFlash card.
- Cine: review up to 220 frame-by-frame images.
- Store up to 700 clips with a 4 Gb CompactFlash card.
DICOM Image Management (TCP/IP)
- Print and Store.
- Modality Work List.
- SonoRoam True Mobility wireless image transfer, 802.11b.
PC Workstation Image Management (TCP/IP, USB, or Flashcard reader)
- Site Link Image Manager – allows transfer, archiving, viewing, and printing of high-resolution bitmap images, and batch compression to JPEG on PCs.
Temperature and Humidity Limits
Operating Limits: System
- 10–40°C (50–104°F), 15–95% R.H.
- 700 to 1060hPa (0.7 to 1.05 ATM)
Shipping/Storage Limits: System without Battery
- -35–65°C (-31–149°F), 15–95% R.H.
- 500 to 1060hPa (0.5 to 1.05 ATM)
Operating Limits: Battery
- 10–40°C (50–104°F), 15–95% R.H.
Shipping/Storage Limits: Battery
- -20–60°C (-4–140°F), 0–95% R.H.
- 500 to 1060hPa (0.5 to 1.05 ATM)
Operating Limits: Transducer
- 10–40°C (50–104°F), 15–95% R.H.
Shipping/Storage Limits: Transducer
- -35–65°C (-31–149°F), 15–95% R.H.
Electrical
- Power Supply Input: 100-240 VAC, 50/60 Hz, 1.2 A Max @ 100 VAC.
Battery
- 6-cell, rechargeable lithium-ion battery pack.
- Runtime is up to two hours, depending on imaging mode and display brightness.
Physical Dimensions
- Height: 3.1 in. (7.87 cm)
- Width: 10.8 in. (27.43 cm)
- Depth: 11.8 in. (29.97 cm)
- Weight (With battery and transducer): 8.5 lbs (3.9 kg)
Display Size
- Height: 6.3 in. (16 cm)
- Width: 8.4 in. (21.34 cm)
- Diagonal: 10.4 in. (26.4 cm)
